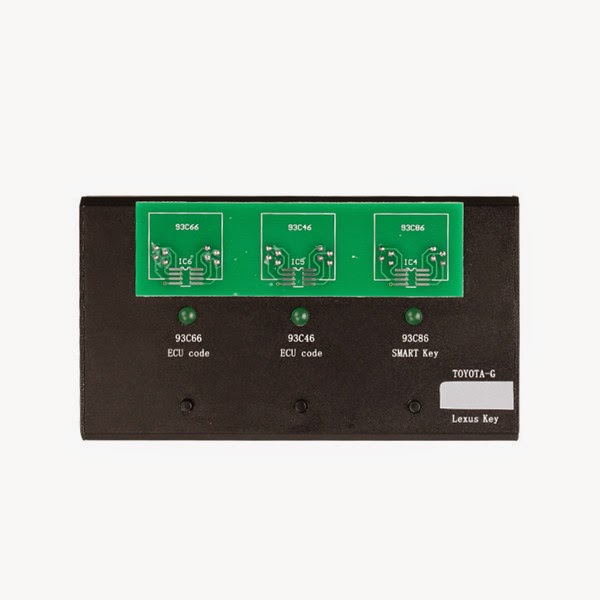

Toyota G Chip and Lexus Smart Key Maker
Quick Overview
Toyota G Chip and Lexus Smart Key
maker is a specialized equipment for Toyota G Keys and Lexus smart card 2
in 1, it support all key lost.
Toyota G Chip and Lexus Smart Key Maker
Instruction of How to Use Toyota G Chip and Lexus Smart Key maker
Description:
This is a 2 in 1 key programmer for Toyota G chip and Lexus smart card.
Toyota G Chip and Lexus Smart Key maker no need to install driver
software for Toyota, Lexus programmer, security, stability, fast, all
with G key Toyota, Lexus Smart Key Programmer SO163 all lost, can be
arbitrarily increased 1-3 keys.
Instruction of How to Use Toyota G Chip and Lexus Smart Key maker
Please try to use ordinary programmer to read 93C66/93C46/93C86
data, save the following way operation.
1. Remove the ECU security module, installed in the 93C66 eeprom IC programmer Toyota models corresponding to the transposon.
1. Remove the ECU security module, installed in the 93C66 eeprom IC programmer Toyota models corresponding to the transposon.
2. Connect the USB cable to the computer, and then switch to the
features Toyota-G position, you can see the relative position of 93C66
the indicator light flashes slowly into the state.
3. Now click on the relative position of the touch switch,
indicator light starts to flash at the moment, a few seconds after the
light is off, the operation was successful.
4. Replace the 93C66 EUC security module, replace the vehicle
anti-theft module is inserted after the first key, anti-theft module
indicator light turns off remove the key, and then insert the second
key, anti-theft module can be directly after indicator goes out to start
the vehicle, completely not synchronous operation, convenient and
quick.
How To Use Lexus Key Programmer:
Note: a match one IC, regardless of the order, do not leave the key sensing area
1. The ECU IMMO module removed, the 93C46 eeprom IC programmer installed in Toyota models corresponding to the transposon
2. Connect the USB cable to the computer, and then switch to Lexus
Key functional position, you can see the relative position of 93C46 LED
flashes slowly into the state, put the key into the induction circle
3. Click on the relative position of the touch switch, indicator
light starts to flash at the moment, a few seconds after the light is
off, initialization is successful. Replace the eeprom IC EUC security
module, replace the vehicle anti-theft module
State: Z type machine simply IC pin cleaned with
alcohol placed within the transposon, H-type machine choose the IC
solder pads on the corresponding
Package List:
1pc x Toyota-G and Lexus Smart Key maker
